VR2AR – Flotation Collar
-
Overview

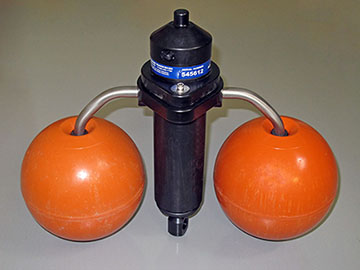

The VR2AR Flotation Collar is designed for use with the VR2AR Acoustic Release and Receiver. It is easy to assemble and attach using an Allen Key (provided by VEMCO). It is a simple and easy deployment solution.
Communications During Retrieval
The flotation collar flips over when rising to the surface so you can maintain communications with the unit even when the package has reached the surface allowing you to locate and recover the VR2AR and VR2AR-X.Performance
The collar design allows the floats to attach below the receiver hydrophone ensuring that there are no shadowing effects on the receiver.Flotation Buoys Sold Separately
Off the shelf floatation buoys can be purchased from your local marine equipment supplier.For more details, see Downloads section.
Have you looked whether you need to update your VR2s? click here
-
Gallery
-
Specifications
Flotation Buoy Specifications External dimensions 200 mm / 8″ Bore dimensions 21 mm / 0.9″ Material Hardshell plastic Minimum total buoy buoyancy in water 5400 g / 12 lbs* Flotation in water Per flotation manufacturer specifications Maximum depth Per flotation manufacturer specifications * More flotation is required in conditions with increased biofouling.
Flotation Collar Specifications (without Flotation Buoys) Dimensions (including VR2AR) Dimensions (including VR2AR-X)
Length: 375 mm / 14.75″
Width: 114 mm / 4.5″
Height: 435 mm / 17″Length: 375 mm / 14.75″
Width: 114 mm / 4.5″
Height: 465 mm / 18.25Weight in air (including VR2AR) Weight in air (including VR2AR-X)
3779 g / 8.3 lbs 4160 g / 9.2 lbs
Weight in water (including VR2AR) Weight in water (including VR2AR-X)
1370 g / 3.0 lbs 1680 g / 3.7 lbs
Maximum depth (VR2AR and VR2AR-X) 500 m / 1640 ft Flotation buoys Per flotation manufacturer specifications Material Acetal copolymer / 316 Stainless Steel Number of buoys required 2 (sold separately) For use with VR2AR and VR2AR-X -
